DH bikes are thoroughbred, singularly focused machines designed for pure speed and thrills downhill.

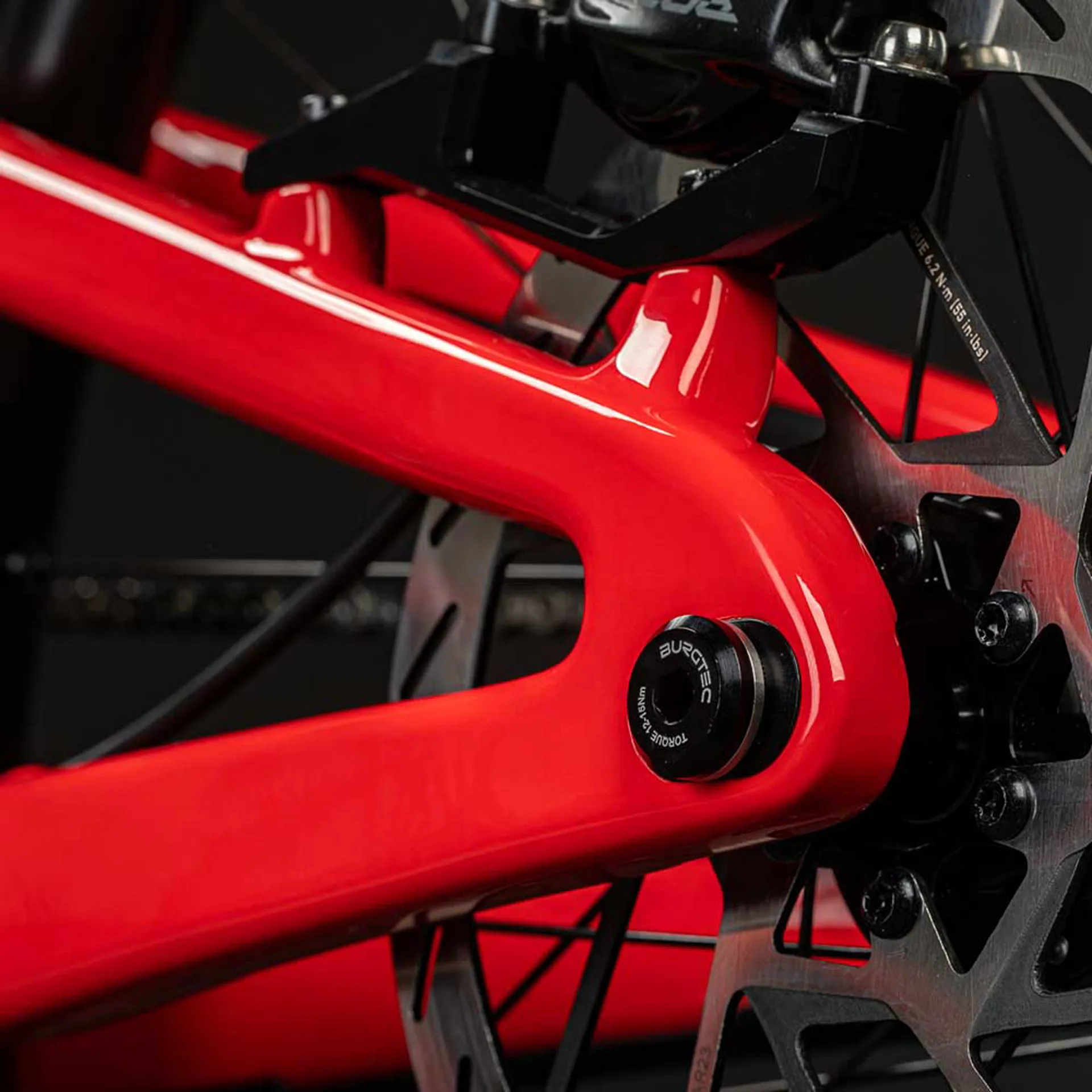

Three points of 3-position adjustment allow fine-tuning for fit, terrain and preference: the rear axle flip chip (+5mm / 0 / -5mm) adjusts fore-aft weight balance; reach-adjust headset cups (-8mm / 0 / +8mm) customize fit, and the lower link flip chip calibrates BB height and head tube angle.
Santa Cruz V10 Features
- Fork Travel: 203mm
- Frame Travel: 208mm
- Shock Size: 250x75mm
- Brake Mounts: 200mm or 220mm Post
- Headset: IS41 upper/ IS41 lower (Reach Adjust)
- Seatpost Diameter: 31.6mm
- Seat Clamp Diameter: 36.4mm
- BB Shell: 83mm Threaded
- Max Tyre Size: 2.5"
- Max Chaingring Size: 36t
- Rear Hub: 157mm x 12mm Through Axle
- Mounting Bushing Width Front:: 30x8
- Mounting Bushing Width Rear: 30x8
- Chainstay Length Adjustment: 3 position Axle Flip Chip

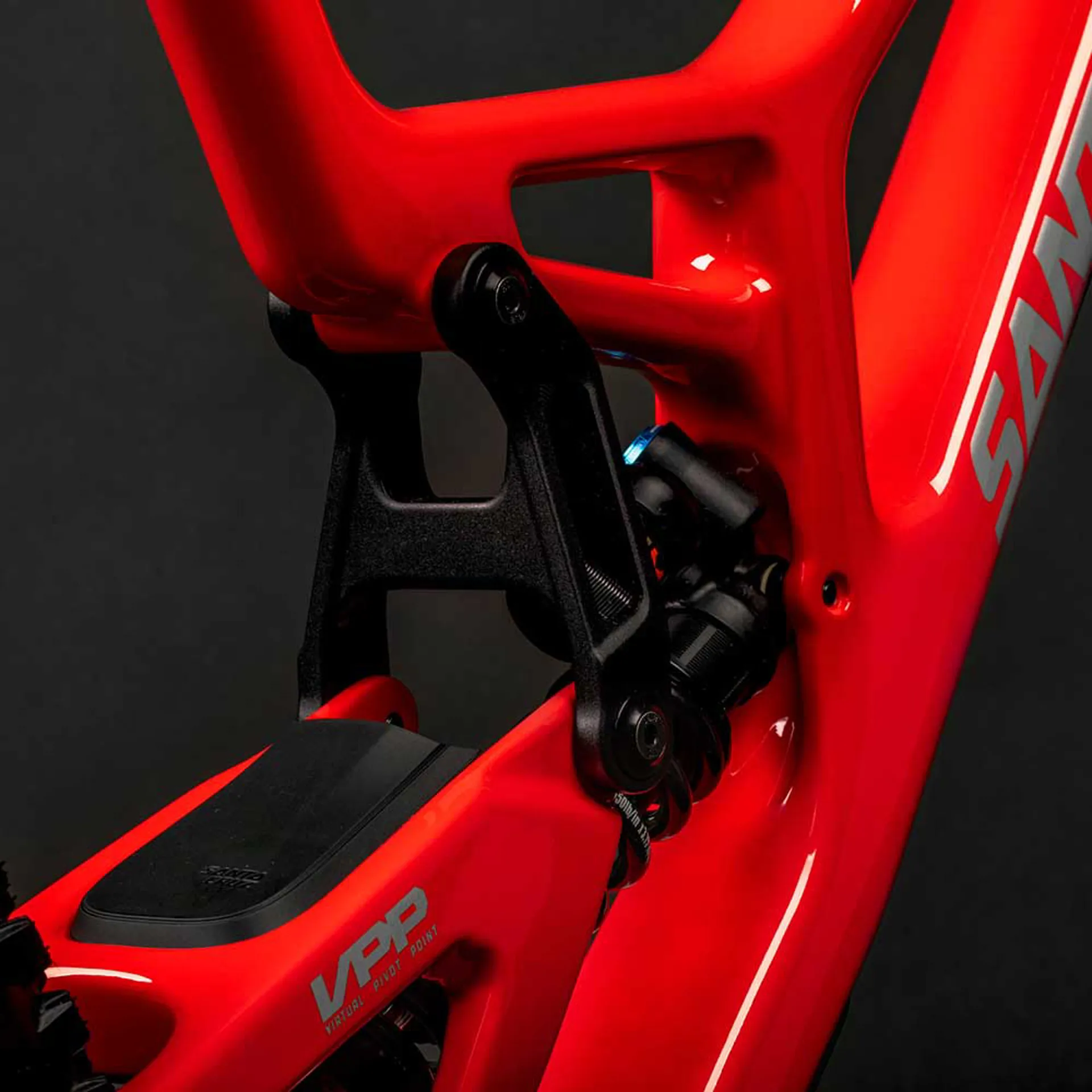

- Adjustable Geometry: 3 position Flip Chip on Lower Link

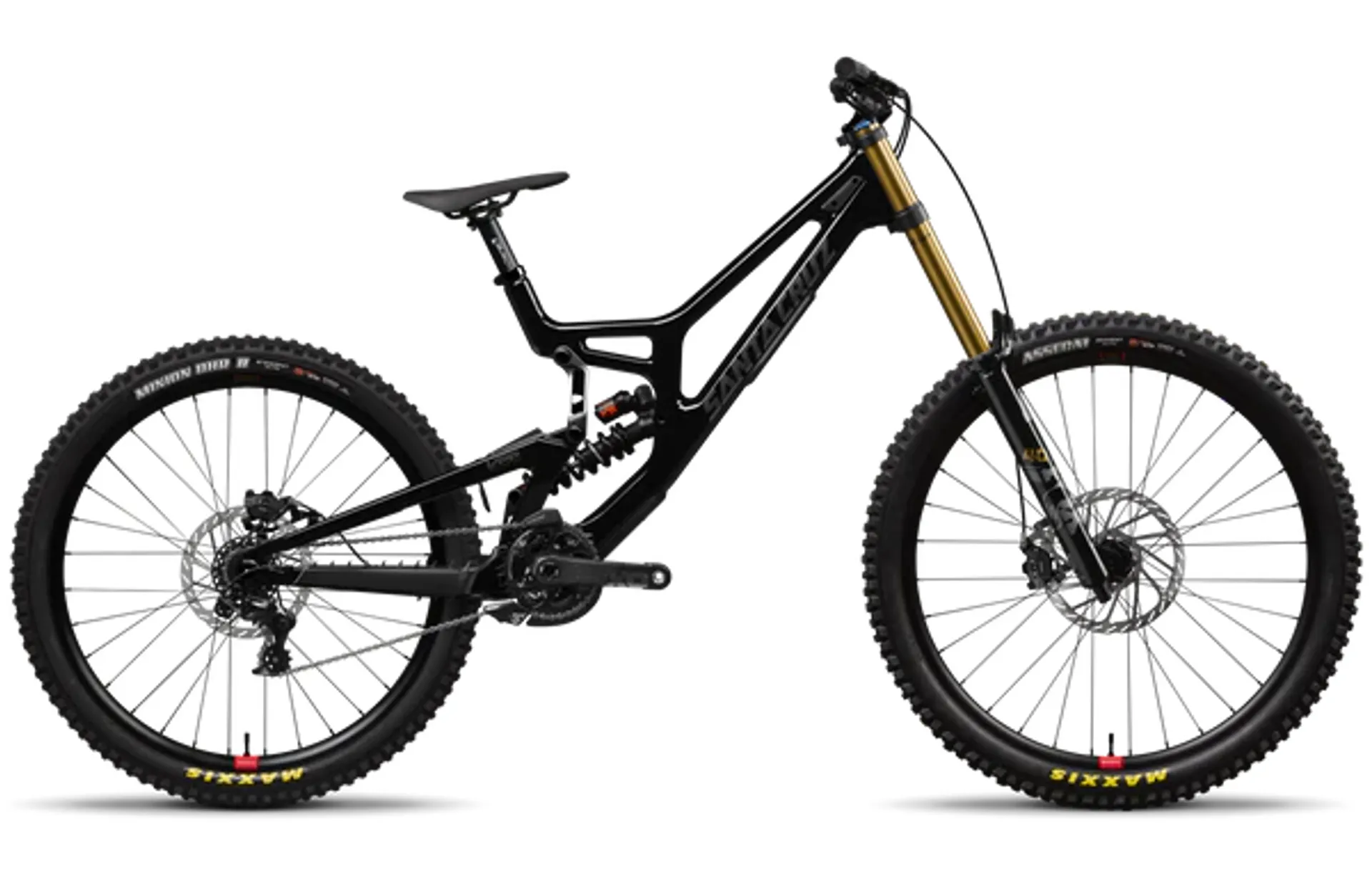

Santa Cruz V10 Carbon CC - XO1 Kit
Fork
FOX 40 Float Factory, Grip X2, 203mm
Shock
Fox DHX2 Factory Coil
Rear Derailleur
SRAM XO1 DH, 7spd
Shifter
SRAM XO1 DH
Crankset
SRAM X01 DH, DUB 83, 165mm, 34t
Cassette
SRAM X01 DH, 7spd
Chain
SRAM PC1170, 11spd
Brakes
SRAM Maven Silver
Rotors
SRAM HS2 220mm Front, 200mm Rear
Handlebars
OneUp Aluminum Bar, 35mm Rise, 800mm
Stem
OneUp Direct Mount Stem
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 50 IS41 Headset 1-1/8
Seatpost
Burgtec Aluminum Post, 31.6
Saddle
Fizik Alpaca Gravita X5 Saddle
Front Tyre
Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH -or- Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH
Rear Tyre
Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH
Front Hub
Industry Nine 1/1 or DT 350, 20x110 Boost, 32h
Rear Hub
Industry Nine 1/1 or DT 350, 12x157, HG, 32h
Rims
Raceface ARC 30 HD
Spokes
Sapim Race
Please Note: Whilst we do our best to keep this information accurate, due to the availability of components some parts listed here may be swapped in order to avoid lengthy delays.
